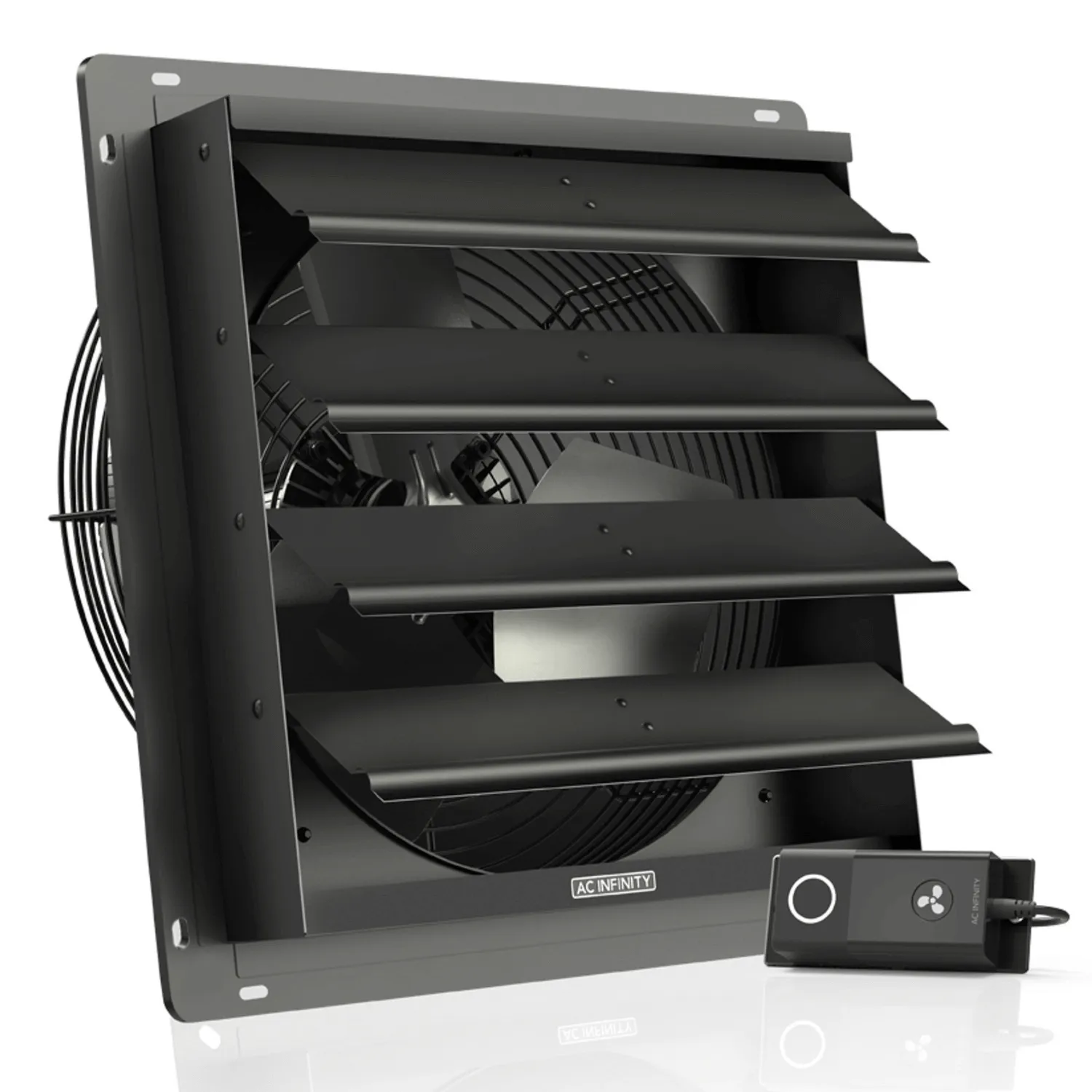

Name: AC Infinity AIRLIFT S14, Shutter Exhaust Ventilation Fan 14", Speed Controller
SKU: 55146

Description

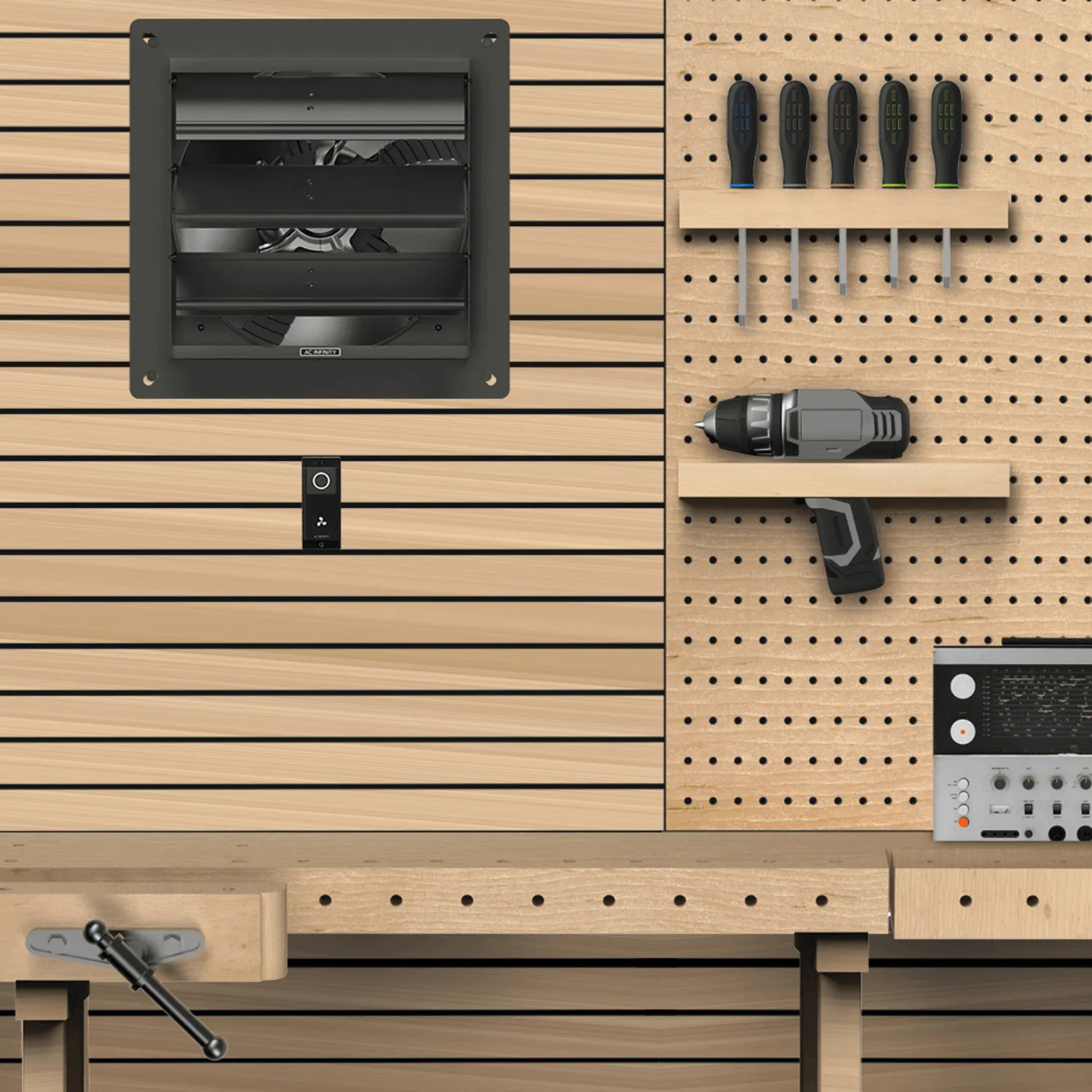

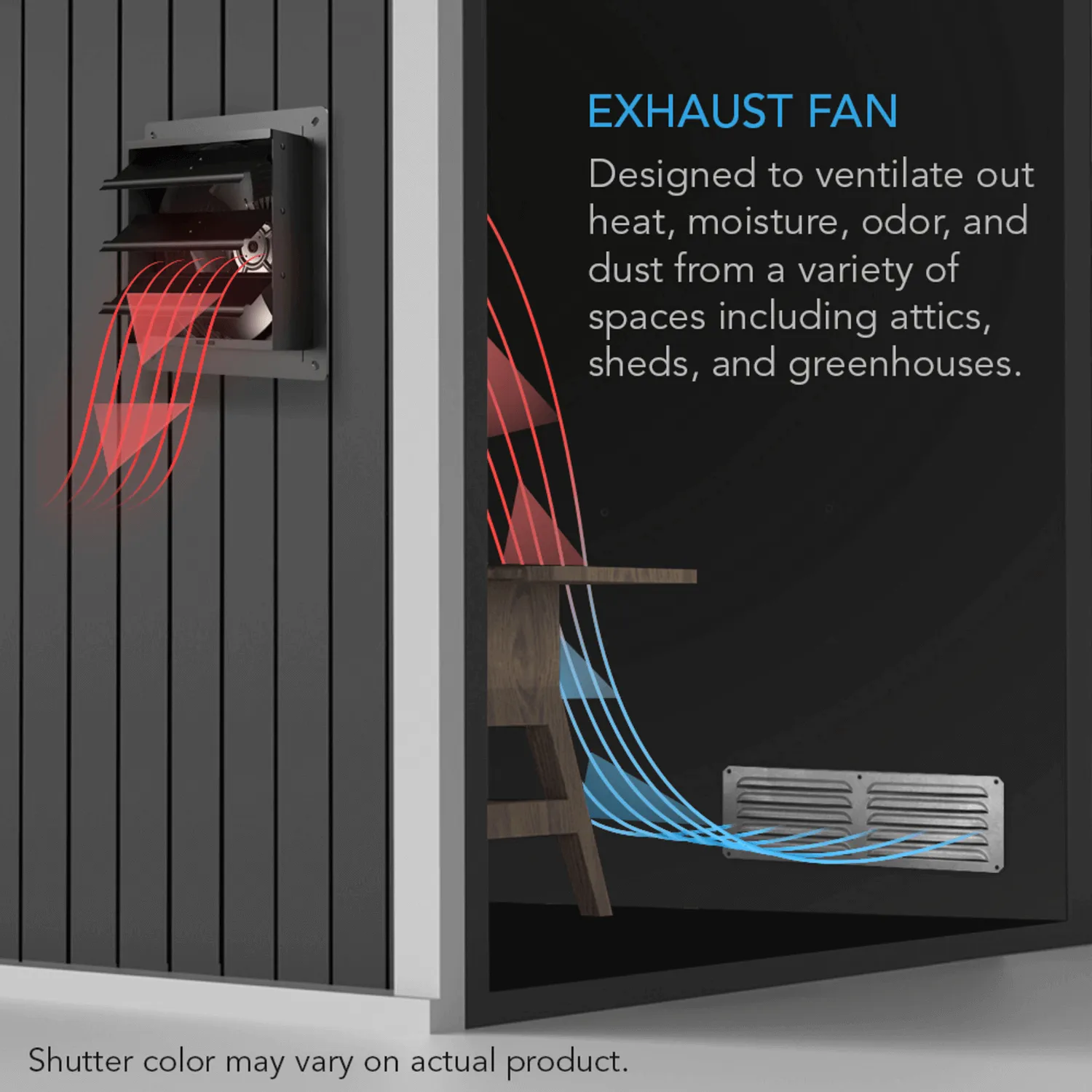

High-Airflow Exhaust Fan: This fan is designed to eliminate heat, moisture, odor, and dust from a variety of environments. Constructed with steel shutters and aluminum blades, this fan gives excellent resistance to dust and liquids, and is ideal for ventilating greenhouses, garages, attics, workshops, and sheds.

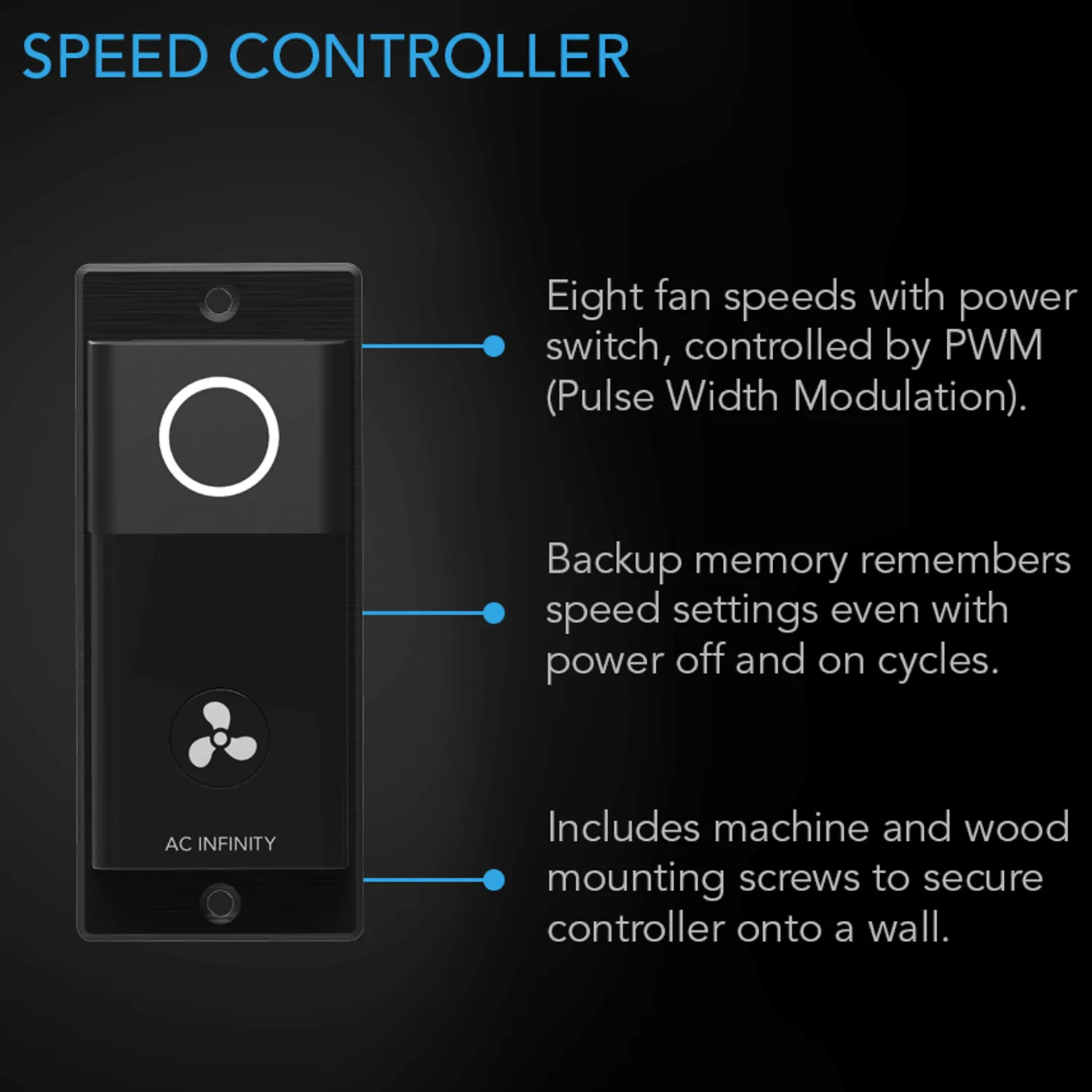

Eight-Speed Manual Controller: Using Pulse Width Modulation (PWM) technology, the inline speed controller allows you to adjust the fan speed to attain optimal airflow and noise levels according to the environment. Consequently, the fan can operate smoothly at low RPM speeds, without creating excess noise or heat.

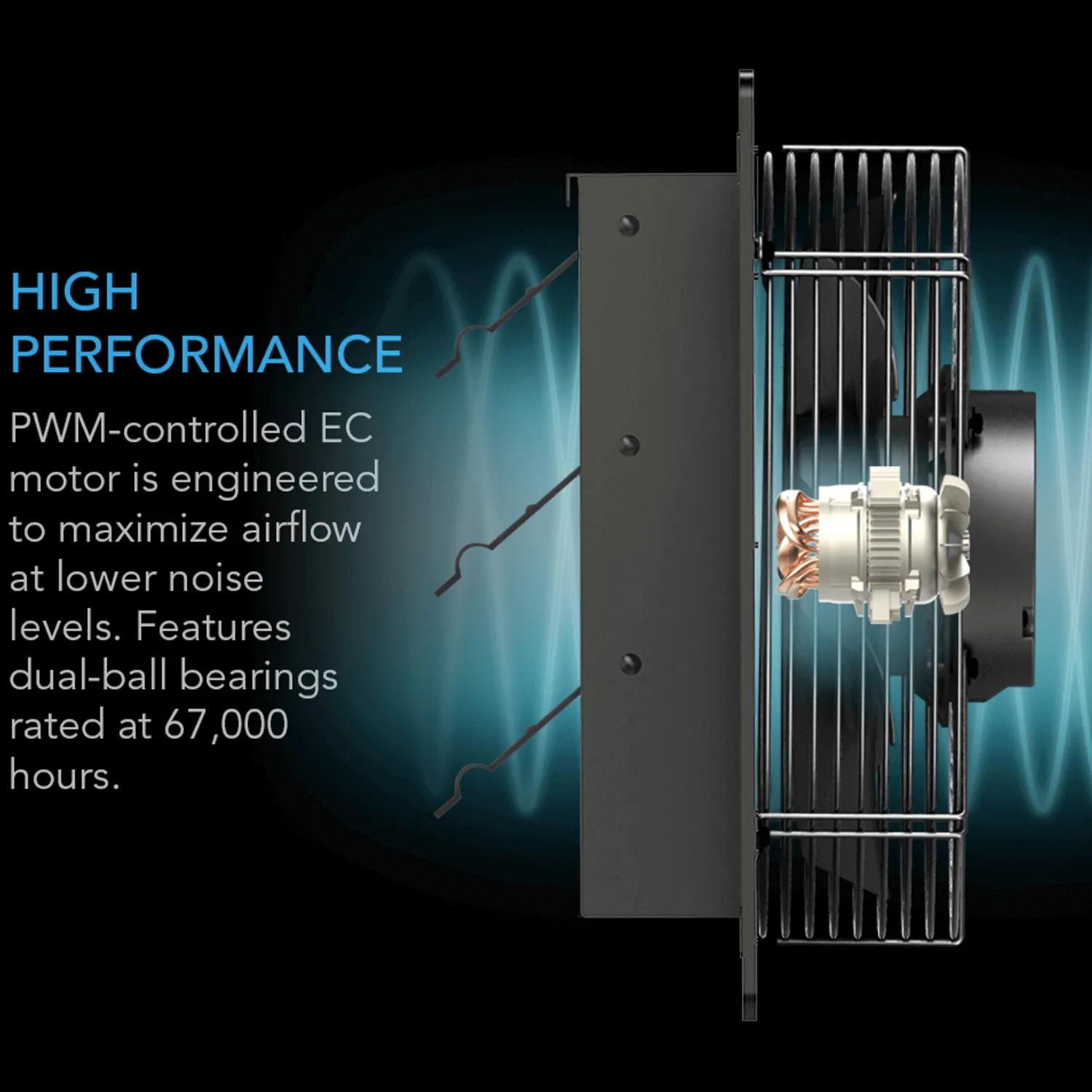

Energy-Efficient EC-Motor: The EC-motor of the fan, controlled by PWM, enhances the airflow while decreasing energy consumption and noise levels. This motor is fully enclosed, permanently lubricated, and houses dual ball bearings with a life rating of 67,000 hours.

Heavy-Duty Construction: This fan features weather and corrosion-resistant steel shutters that close automatically when the fan is not in use. The blades and impeller are made of lightweight, balanced aluminum, reducing vibrations for a smoother operation.

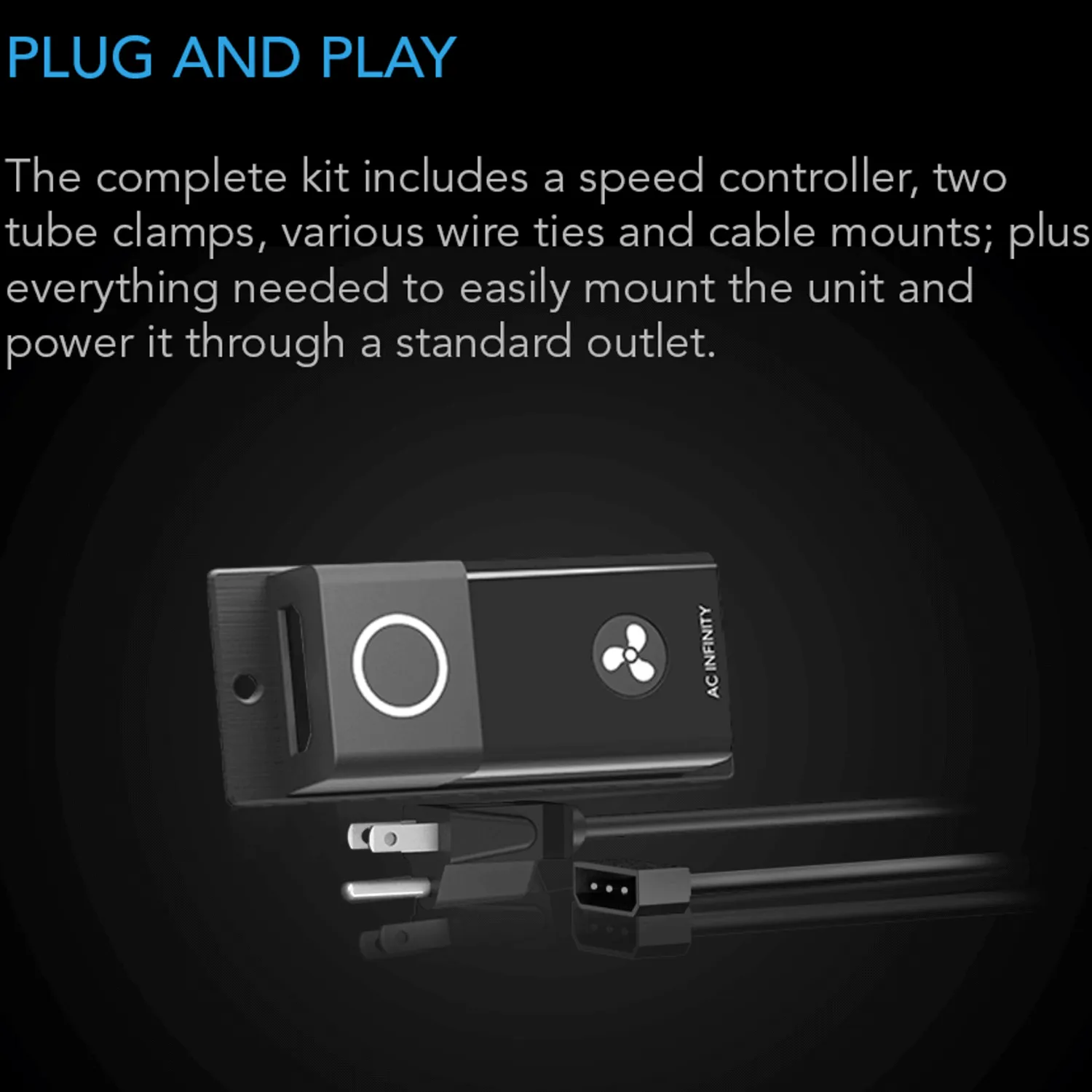

Product Dimensions and Features: The fan size is 14". Overall Dimensions are 16.93 x 16.93 x 8.1 inches. This fan provides a powerful airflow of 1513 CFM, and operates at a noise level of 68 dBA. The package includes all the necessary parts to mount the fan unit and power it through an outlet.

Benefits of the UIS™ Platform: This product belongs to the UIS™ line of smart controllers and grow devices. Designed to connect and synchronize with each other, these devices help in creating your ideal environment.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AIRLIFT S14

Product Model: AC-ALS14

UPC Code: 819137021457

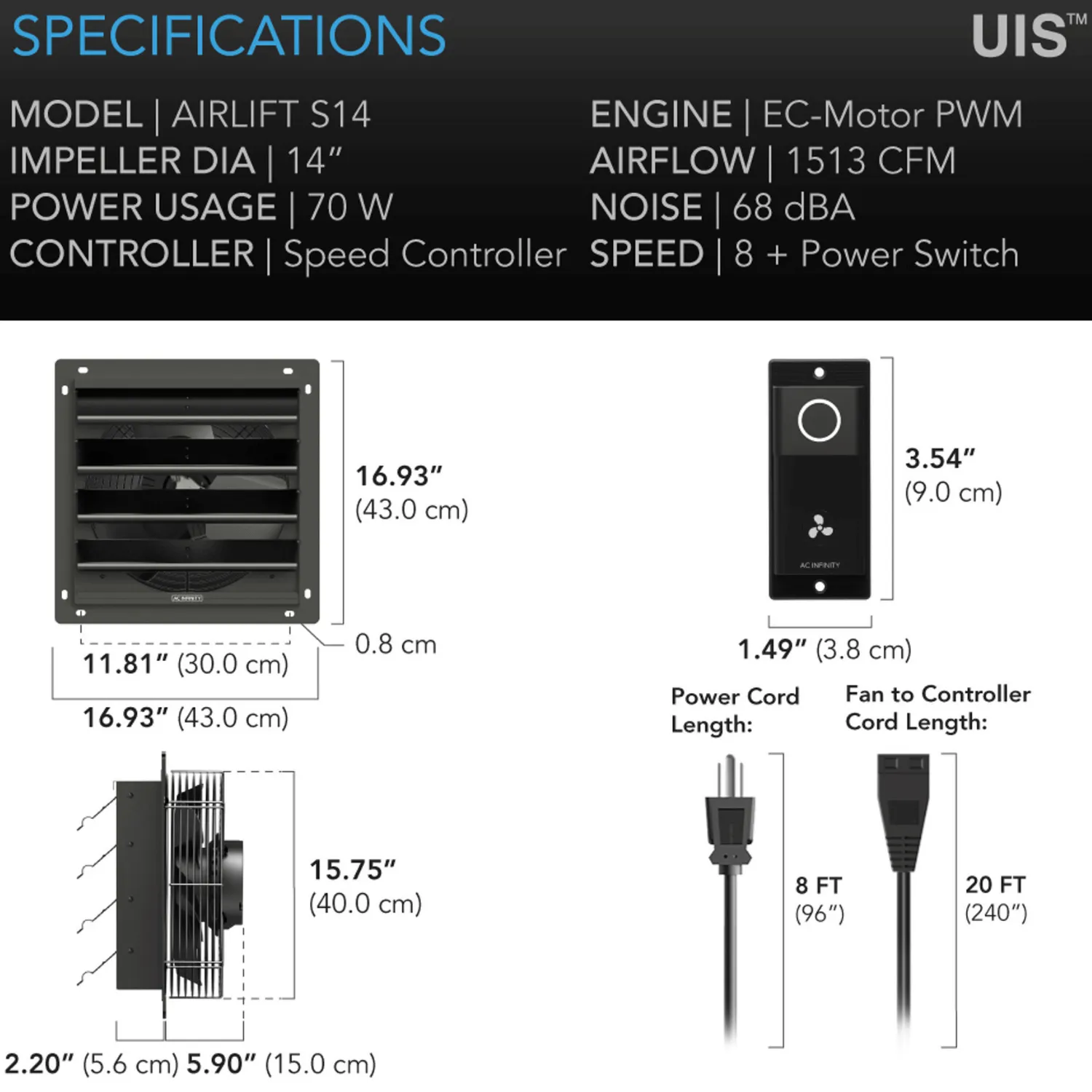

Product and Mounting Dimensions - Fan Unit

Total Dimensions: 16.93 x 16.93 x 8.1 in. (43.0 x 43.0 x 20.6 cm)

Frontside Enclosure Dimensions: 14.52 x 14.52 in. (36.9 x 36.9 cm)

Required Mounting Hole: 14.68 x 14.68 in. (37.3 x 37.3 cm)

Hole to Hole Distance: 15.75 x 15.74 in. (40.0 x 40.0 cm)

Screw Hole Size: Ø 0.27 in. (Ø 0.7 cm)

Cord Length to Controller: 240 in. (20 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)

Required Mounting Area: 2.95 x 0.51 in. (3.6 x 1.3 cm)

Hole to Hole Distance: 2.87 in. (7.3 cm)

Screw Hole Size: Ø 0.157 in. (Ø 0.4 cm)

Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs

Total Airflow: 1513 CFM

Total Noise: 68 dBA

Static Pressure: 70.46 Pa

Operating Voltage: 100-240V AC

Power: 70W

Current: 1.2A

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Life Expectancy: 67,000 Hours

CE Certification (Whole Product)

CE Certification (Whole Product) PDF

Data Sheets

Download the product manual:

Download the CE Certification:
